Trotec IC080LV Thermal Imaging Camera
Temporarily unavalable

Trotec IC080 LV Thermal Imaging Camera

Trotec
Free Delivery
Dispatched Same Day
100% Money Back Guarantee
With patended DuoVision software, high geometric resolution and an extra large image sensor, the IC080 LV model can be used for any task required and is considered one of Trotec's high performance models.
$3,285.55 Excl. GST
Quantity:
Secure Payment
1300 393 583
If you have any questions about this product, call our customer service or send us an e-mail.

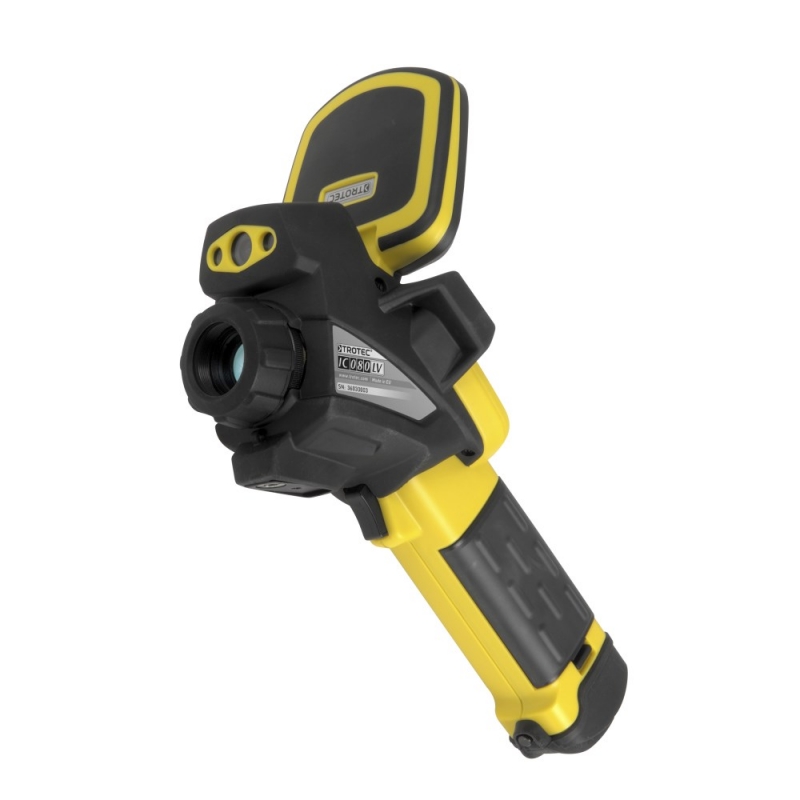

The Trotec IC080 LV is a top of the class thermal imaging camera that provides an astounding 384 x 288 infared sensor, geometric resolution of 1.1 mrad and contains thermographic video recordings and evaluations in real-time. It truly offers high precision measurements for any task you require.

It also comes standard with an integrated digital camera, photo lamp, DuoVision function and an optional Bluetooth function for wireless verbal comments. The IC080 LV is ideal for taking it on the road, as it contains a high performance battery that will last longer than any standard option.

Features

  • High geometric resolution of 1.1 mrad
  • High performance image sensor of 384 x 288 measuring spots
  • Refresh rate of 50/60Hz
  • High thermal sensitivity of 0.05°C (50mK)
  • DuoVision function for picture-in-picture display
  • 3"5 inch LCD display
  • Automatic hot/cold spot recgonition
  • Four movable measuring spots for extra flexibility
  • Isotherm function
  • Integrated photo lamp
  • Short focusing distance of only 10cm

Accessories

Standard lens and laser, Battery charger, Li-ion battery, Mini SD memory card, Video cable, Operating manual, Transport case, Software package and Temperature test certificate

  • -20 °C to +600 °C
  • 384 x 288 pixels
  • 1.1 mrad
  • 0.05 °C at 30 °C
  • ±2 °C, ± 2% of the measured value
  • 2.5 h
  • Rechargeable standard lithium-ion battery, replace
  • Semiconductor AlGalnP Diode Laser
  • 3.5 inch LCD
  • 50/60 Hz
  • -15 °C to +50 °C
  • 24° x 14°
  • 7.5 to 14 µm
  • 230 x 80 x 195 mm
  • 650g
  • IP 54 IEC 529
