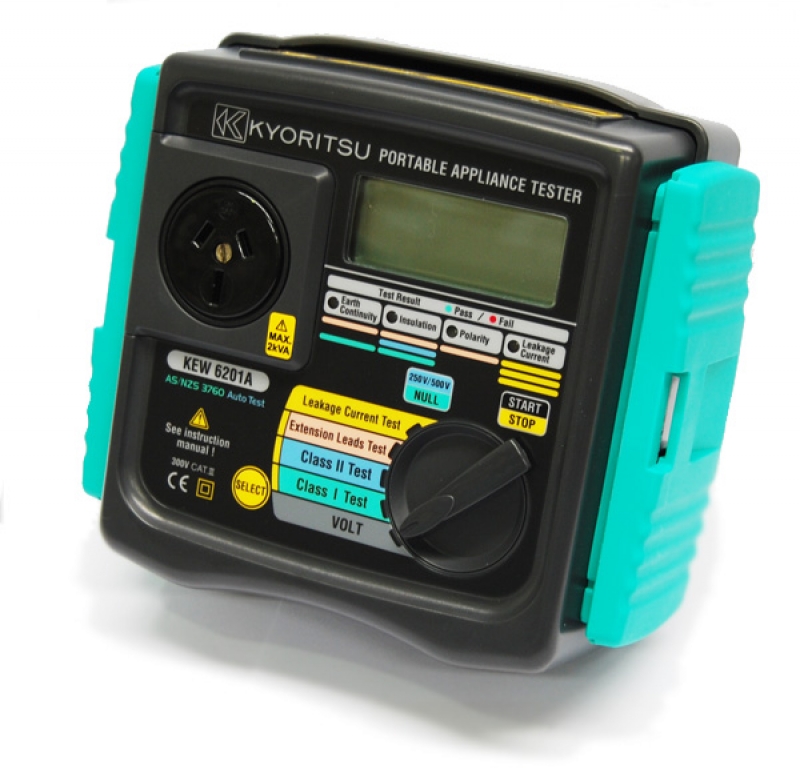

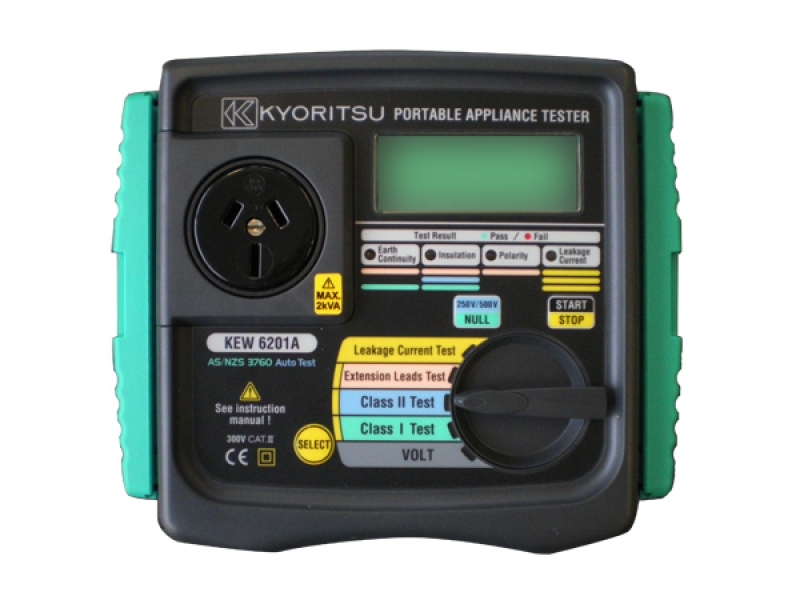

Kyoritsu 6201A Portable Appliance Tester- EXELTest

The 6201A is very simple to use - just by turning the rotary dial to the test you want, it will automatically complete the test you choose in less than 5 seconds.

It tests appliances and extension leads to the AS/NZS 3760 standard, including those with electronic switches.

Features

Conducts tests super fast

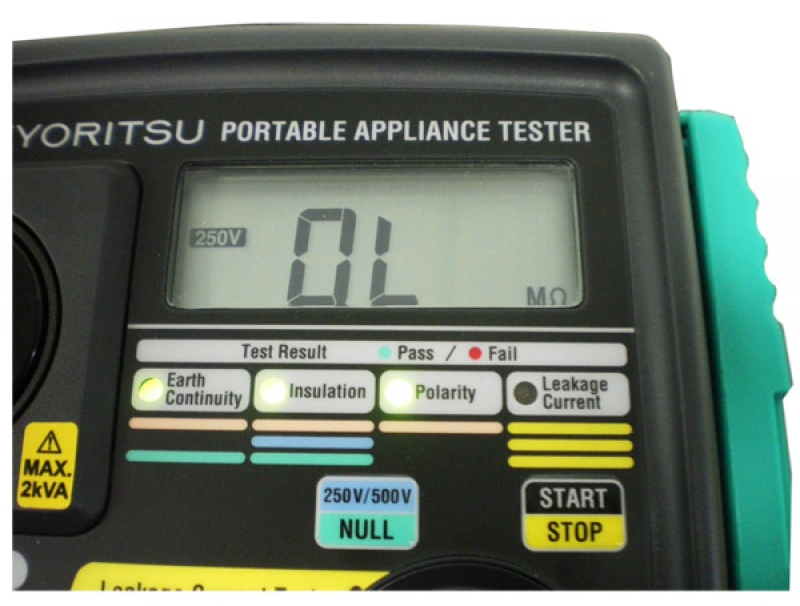

Large LCD display that shows a PASS or FAIL with its four LED lights
Easy test selection with rotary dial
Robust construction

Accessories

Carry case for leads, Earth bond lead, 240V Extension lead adaptor, Power supply lead, Manual & Calibration Certificate.

Tests Performed

Extension Leads
Leakage Current
250V Insulation
500V Insulation

Dimensions
185 (L) × 167 (W) × 89 (D) mm
Weight
1kg
Application Standards
IEC 61010-1 CAT.III 300V, Pollution Degree2
IEC 61326-1 EMC requirements
Supply Voltage
207~264V
Frequency
50/60Hz±1%
Protective Conductor Test
Measuring Range: 0-19.99Ω
Resolution of Measurement: 10mΩ
Short Circuit Current: 200-250mA DC
Open Circuit Voltage: ±5.0 ±0.4V DC
Accuracy: ±(2%rdg + 3dgt)
Insulation Resistance
Rating: 500V, 250V
Range: 0-19.99/0-199.9MΩ
Output Voltage: 500V DC, 250V DC
Current: 10mA DC or less
Accuracy: ±2%rdg +3dgt
Volt AC Voltmeter
Range: 180-260V
Measurement: 1V
Accuracy: ±2%rdg +3dgt
